A fiber optic patch cord is a pre-terminated fiber cable with connectors on both ends, used to connect network devices, transceivers, and patch panels for reliable optical communication.

Overview

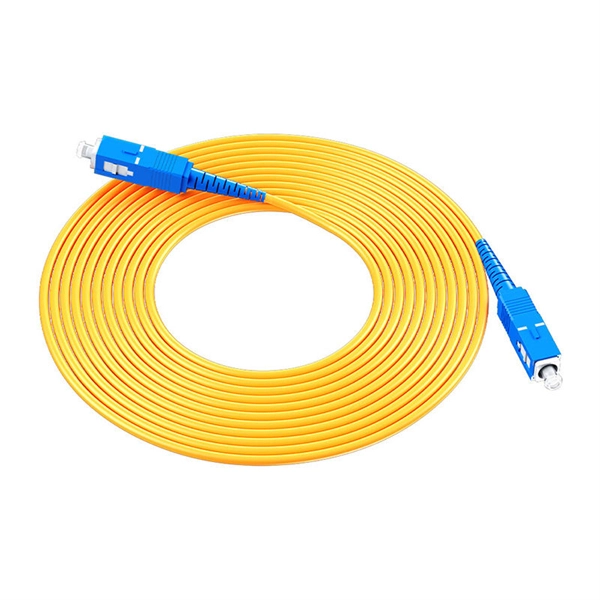

A fiber optic patch cord, also called a fiber jumper, is a short, flexible cable with connectors on both ends designed for point-to-point connections within a network, such as connecting switches, servers, or optical transceivers to patch panels . Unlike pigtails (one-ended connector) or trunk cables (multi-fiber backbone), patch cords are used for short-distance, high-performance connections in data centers, telecom, and enterprise networks .

Fiber Types

• Single-Mode Fiber (SMF, OS2): Suitable for long-distance transmission, typically 10 km to over 80 km. Ideal for campus or long-haul links .
• Multimode Fiber (MMF, OM1/OM2/OM3/OM4/OM5): Best for short-distance connections within data centers. OM3/OM4/OM5 support higher bandwidth and longer distances, with OM4 recommended for improved stability . Rule of thumb: Use single-mode for long reach and multimode for intra-data center links .

Connector Types

Common connectors include:

• LC: Small form factor, duplex, widely used in modern data centers, compatible with QSFP transceivers via LC breakouts .
• SC: Larger connector, historically used in 1G systems .
• MPO/MTP: Multi-fiber connectors for high-density parallel transmission, supporting 100G, 400G, and beyond .
• Other connectors: E-2000, SN, CS, MDC, etc., depending on equipment compatibility .

Cable Jacket Types

• PVC: Basic indoor use, not suitable for air ducts.
• Plenum (OFNP): Fire-resistant, safe for air ducts.
• Riser (OFNR): For vertical shafts between floors.
• LSZH (Low Smoke Zero Halogen): Emits minimal smoke/toxic gas, common in Europe and high-safety areas .

Selection Guidelines

1. Match fiber type to module/transceiver: Ensure single-mode or multimode compatibility and correct wavelength (e.g., 850 nm for multimode, 1310 nm for single-mode), .
2. Connector compatibility: Verify LC, MPO, or other connectors match the ports on your devices .
3. Length and slack management: Avoid excess length to reduce signal loss and maintain organized cabling .
4. Quality and vendor: Use high-quality, low-loss cables from trusted brands to ensure reliable performance and controllable bit error rates .
5. Future scalability: Consider higher-spec fibers (e.g., OM4 instead of OM3) to support future network upgrades .

Applications

Fiber optic patch cords are essential for:

• Connecting transceivers to switches or servers
• Linking patch panels to network devices
• High-speed data center networks supporting 10G to 800G and beyond
• Ensuring low latency, high reliability, and EMI immunity in structured cabling By selecting the correct fiber type, connector, and jacket, patch cords provide flexible, scalable, and high-performance connectivity for modern optical networks.
