Fiber optic patch cords are fabricated through precise cutting, stripping, connector assembly, polishing, and rigorous testing to ensure minimal insertion loss and high signal integrity.

Fabrication Process

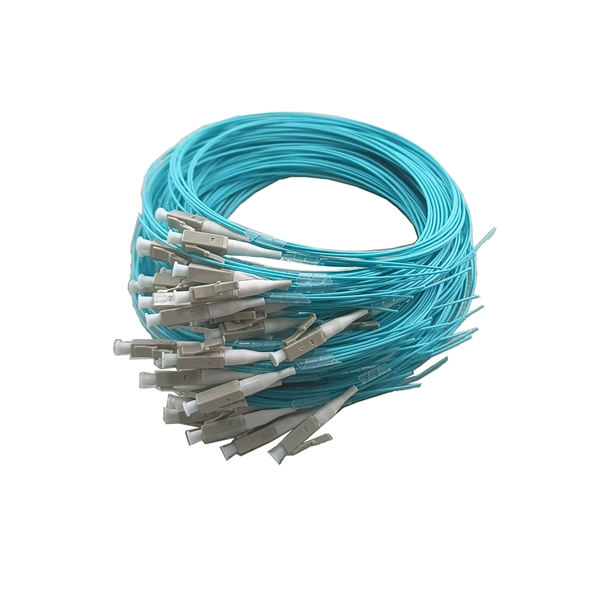

1. Material Selection and Preparation The process begins with selecting the appropriate fiber type (single-mode or multi-mode), connectors (LC, SC, FC, ST, MTP), and jacket material (PVC, LSZH, or armored) based on application requirements . Premium-grade fibers, such as Corning® SMF-28e® or OM3/OM4 multi-mode fibers, are used for optimal performance . Cables are cut to precise lengths using automated CNC-controlled cutting machines, ensuring ±1mm accuracy for consistency . 2. Stripping and Cleaning The outer jacket and buffer coating are carefully removed using precision strippers without damaging the fiber. Typical buffer diameters are 3.0mm, 2.0mm, or 0.9mm . The exposed fiber is cleaned with alcohol to remove dust and residues, preparing it for connector insertion . 3. Connector Assembly Epoxy is injected into the connector ferrule, and the cleaned fiber is inserted. The assembly is cured in an oven (commonly at 120°C for 20 minutes) to secure the bond and ensure long-term stability . Connector housings and strain relief boots are then assembled. 4. Polishing and End-Face Preparation Ferrule end-faces are polished using automated multi-stage diamond polishing machines. UPC or APC polishing is applied depending on the connector type, with APC requiring up to eight steps for optimal mirror-smooth surfaces . Polished ferrules are cleaned using ultrasonic equipment and inspected under microscopes (400x–600x magnification) to detect scratches, pits, or contamination .

Testing Process

1. Insertion Loss (IL) and Return Loss (RL) Testing IL and RL are measured using an Optical Loss Test Set (OLTS) with a stabilized light source and optical power meter. The device is calibrated with a reference jumper to establish a zero-loss baseline. Measurements are taken in both directions to account for connector asymmetries, and RL is calculated by measuring back-reflected power . High-quality patch cords typically achieve IL ≤0.2dB for single-mode fibers and RL >50dB . 2. End-Face Inspection and Metrology 3D interferometric end-face metrology is used to verify ferrule geometry, apex offset, and fiber height. This ensures compliance with IEC 61754 and Telcordia GR-326 standards and prevents optical inefficiencies . Defective connectors are either re-polished or discarded. 3. Polarity and Functional Verification For multi-fiber assemblies (e.g., MPO/MTP), polarity verification ensures correct alignment of transmit (Tx) and receive (Rx) channels . Any connectors exceeding test thresholds are cleaned, repaired, or retested to maintain quality standards . 4. Final Inspection and Packaging After passing all tests, patch cords are visually inspected for damage, dirt, or improper assembly. Duplex cords and pigtails are heat-shrinked at specified distances from the connector, and dustproof caps are applied before packaging .

Quality Control Considerations

• Automated cutting and polishing ensure repeatability and precision .
• Microscope inspection and interferometry detect microscopic defects early .
• Bidirectional IL testing and RL measurement guarantee signal integrity and minimal reflection .
• Adherence to international standards ensures compatibility and reliability in high-speed networks . This comprehensive fabrication and testing workflow ensures that fiber optic patch cords deliver high performance, durability, and reliability in data centers, telecom networks, and industrial applications.
