Proper grounding of a distribution box in Costa Rica ensures safety, equipment protection, and compliance with local electrical standards.

Key Principles

Grounding is essential for safety, equipment protection, and system stability. It channels fault currents safely into the earth, reducing the risk of electric shock and protecting electrical equipment from overvoltages or lightning strikes . In Costa Rica, grounding must comply with the Colegio Federado de Ingenieros y de Arquitectos (CFIA) guidelines and local electrical codes .

Materials and Components

• Grounding Wire: Typically copper, sized according to the load and local code requirements .
• Ground Rods/Electrodes: Buried in the earth to provide a stable grounding point. Multiple rods may be used to achieve low resistance .

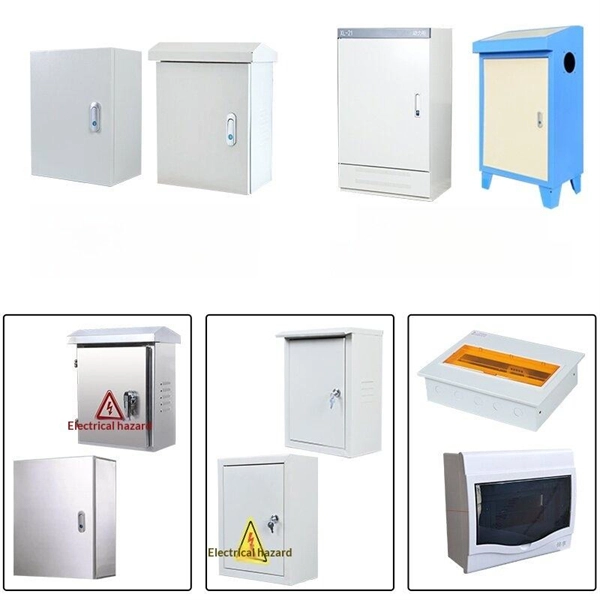

• Distribution Box: Metal boxes are preferred; if using plastic boxes, a dedicated grounding wire must be installed to a metal part or grounding terminal .
• Connectors and Clamps: Ensure secure connections between wires, rods, and the box. Copper components are commonly fused or clamped to electrodes for durability .

Installation Steps

1. Inspect the Distribution Box: Check for damage or cracks. Ensure it is suitable for grounding connections .
2. Install Ground Wire: Connect one end to the metal part of the box and the other to the ground rod. Ensure a large contact area for effective grounding .
3. Place Ground Rods: Drive rods into the earth at a location with good soil conductivity. Test resistance with a voltmeter; if too high, add rods or relocate .
4. Test Grounding Effectiveness: Use a voltmeter to confirm that the grounding resistance meets safety standards. A properly grounded system should show a voltage below the maximum safe threshold .
5. Integrate with Electrical System: All metal parts, conduits, and plugs must be connected to the grounding system to ensure full protection .

Best Practices

• Use UL-approved materials and U.S.-type boxes when possible, as local boxes may not meet NEC standards .
• Ensure all splices and terminations are inside boxes; dangling wires are not acceptable .
• For complex installations or distributed generation (e.g., solar panels), consult a qualified Costa Rican electrician to ensure compliance with CFIA and utility requirements .
• Periodically inspect and maintain grounding connections to prevent corrosion or loosening over time . By following these guidelines, a distribution box in Costa Rica can be safely grounded, protecting both personnel and equipment while meeting local regulatory standards.
