Article Overview
An optical splitter can slightly reduce signal power but does not inherently reduce bandwidth, and its impact on the network depends on split ratio, insertion loss, and deployment architecture.
How Optical Splitters Work

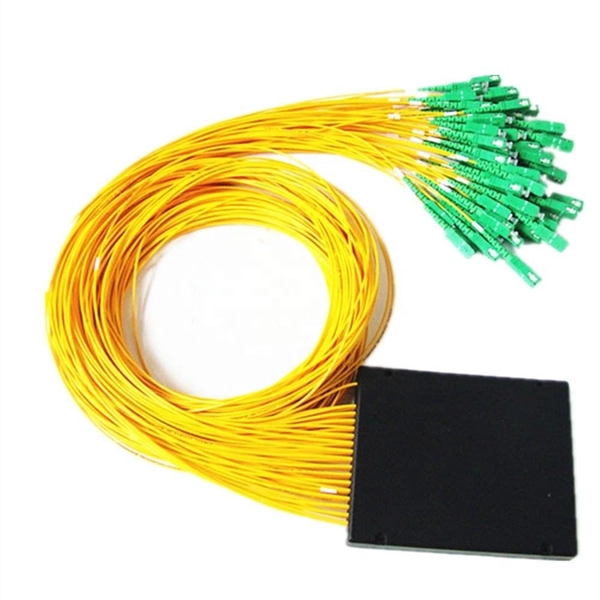

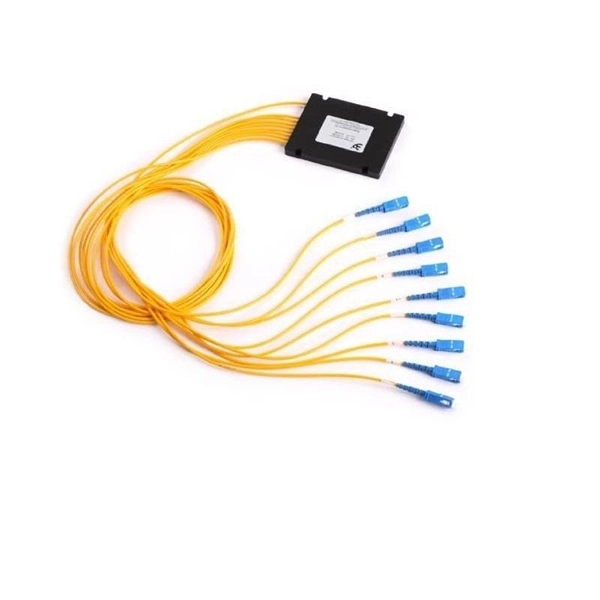

An optical splitter is a passive device that divides a single optical signal into multiple outputs, allowing one fiber from an Optical Line Terminal (OLT) to serve multiple Optical Network Terminals (ONTs) without requiring additional fibers . Splitters operate without electricity, relying on light physics to distribute signals, which makes them highly reliable and low-maintenance .
Impact on Network Performance
- Insertion Loss: Splitting a signal naturally reduces its optical power. For example, a 1:32 splitter divides the input signal among 32 outputs, causing a drop in signal strength . However, modern PON systems are designed to accommodate this loss, ensuring that each endpoint still receives sufficient power for high-speed data transmission .
- Bandwidth Allocation: Splitters do not reduce the total bandwidth available. Each user still receives the full data stream, with bandwidth dynamically allocated by the OLT in technologies like Gigabit or 10-Gigabit PON . The network remains efficient even with multiple splits.
- Split Ratios and Scalability: Higher split ratios (e.g., 1:64) increase the number of users per fiber but also increase insertion loss, which can limit the maximum reach of the network . Choosing the correct split ratio is critical for balancing cost, coverage, and performance .
- Deployment Architecture: Splitters can be centralized (located at a central office or cabinet) or distributed (placed closer to end users). Centralized splitting allows easier reconfiguration and maintenance, while distributed splitting may limit flexibility but can reduce fiber usage in certain layouts .
Practical Considerations
- Optical splitters are ideal for cost-efficient network expansion, allowing multiple users to share a single fiber without sacrificing performance .
- Proper network design, including split ratio selection and power budget planning, ensures that the splitter's impact on signal quality is minimal .
- Splitters are passive and bidirectional, supporting both downstream and upstream communication, which is essential for services like video calls and internet access .
Conclusion
While an optical splitter slightly reduces signal power due to insertion loss, it does not inherently degrade bandwidth or network performance if the network is properly designed. Its effect depends on the split ratio, placement, and overall PON architecture, making it a critical but manageable component in modern fiber networks .
