Images can be transmitted through fiber optics using coherent fiber bundles or modulated light signals, preserving spatial and intensity information for high-fidelity imaging.

Coherent Fiber Bundles

Coherent fiber bundles are a primary method for transmitting images through optical fibers. These bundles consist of thousands of individual optical fibers arranged so that each fiber's position at the input end corresponds exactly to its position at the output end, maintaining the spatial structure of the image . Each fiber acts like a pixel, and the number and diameter of fibers determine the resolution. The core-cladding structure ensures total internal reflection, minimizing light loss and preserving image brightness and contrast . Coherent bundles are widely used in medical endoscopes, industrial inspection tools, and research imaging systems because they allow flexible, minimally invasive image transmission while maintaining high fidelity .

Modulated Light Transmission

In broader fiber-optic communication systems, images can also be transmitted by converting visual information into electrical signals, which then modulate a light source such as a laser diode or LED . Techniques like wavelength division multiplexing (WDM) allow multiple signals, including image data, to be sent simultaneously through a single fiber by using different wavelengths . The modulated light travels through the fiber via total internal reflection, and at the receiving end, photodetectors convert the light back into electrical signals to reconstruct the image . This method is suitable for long-distance transmission and high-bandwidth applications, such as telecommunication networks and high-speed video streaming .

Key Factors Affecting Image Transmission

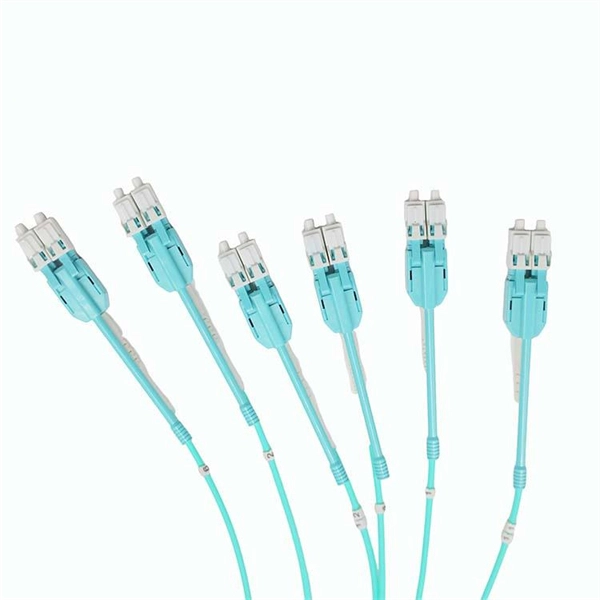

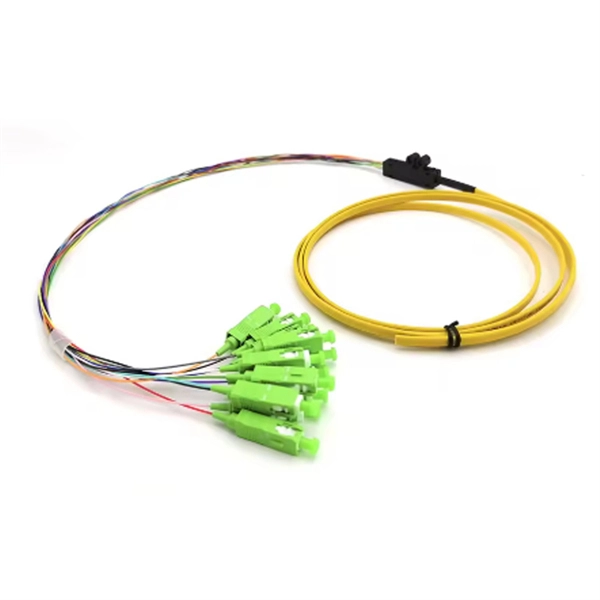

• Fiber type: Single-mode fibers provide low attenuation and high bandwidth for long-distance transmission, while multimode fibers are used for shorter distances .
• Core size and numerical aperture: These determine how much light is captured and transmitted, affecting brightness and resolution .
• Alignment and coherence: In coherent bundles, precise alignment preserves spatial information; misalignment can cause image distortion .
• Losses and scattering: Absorption, scattering, and reflections reduce transmission efficiency, which can be mitigated by high-quality fiber materials and coatings .

Applications

• Medical imaging: Endoscopes and minimally invasive surgical tools rely on coherent fiber bundles for real-time imaging .
• Industrial inspection: Flexible fiber bundles allow inspection of hard-to-reach areas while maintaining image clarity .
• Telecommunications: High-speed video and multimedia transmission over long distances use modulated light in optical fibers . In summary, image transmission through fiber optics can be achieved either by coherent fiber bundles, which preserve spatial information for direct imaging, or by modulating light signals, which convert images into data for high-speed, long-distance communication. Both methods leverage the unique properties of optical fibers, including high bandwidth, low attenuation, and immunity to electromagnetic interference, to deliver clear and reliable image transmission.
