Proper grounding in a distribution box ensures personnel safety, equipment protection, and system stability by providing a low-resistance path for fault currents.

Purpose of Grounding

Grounding in a distribution box serves multiple critical functions: it protects personnel from electric shock, prevents equipment damage from overvoltages or lightning, and stabilizes system voltages during transient conditions . By connecting conductive parts to earth, grounding reduces potential differences and ensures that protective devices like circuit breakers operate correctly .

Grounding Methods

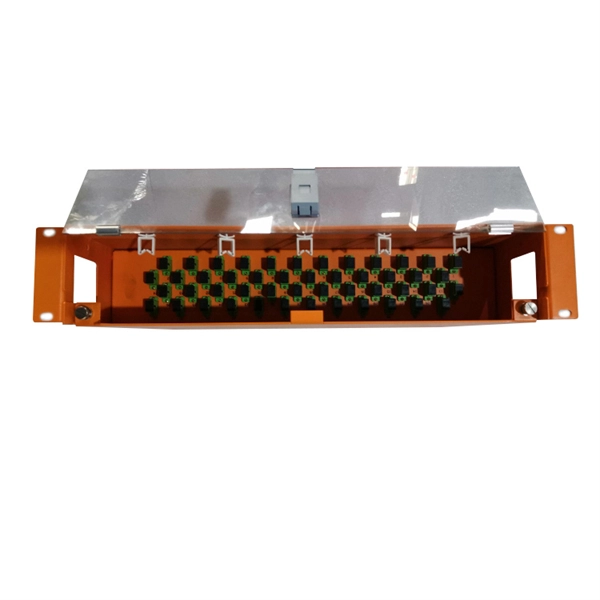

1. Equipment Grounding: Each distribution box and controller must be connected to a reliable ground point. In practice, a ground wire is attached from a threaded stud on the box to the mounting plate, and then from the mounting plate to the central grounding point . This ensures all metallic parts are at the same potential.
2. Neutral Grounding: In many distribution systems, the neutral conductor is grounded at the transformer and at strategic points in the network. This multiground approach enhances safety, allowing the system to operate safely even if one ground connection is lost .
3. Overhead and Underground Lines: Grounding conductors, such as shield wires or static wires, are installed above or alongside phase conductors. Ground rods, plates, or counterpoise systems are used to dissipate fault currents efficiently, especially in areas with high soil resistivity .

Wire Sizing and Resistance Requirements

• In the US, a 10 AWG (5.26 mm²) ground wire is typically used, while other markets may require 6 mm² .
• For connections between mounting plates and equipment, larger wires (e.g., 16 mm² or 6 AWG) may be used to maintain low resistance.
• The total ground resistance between system parts should be less than 0.1 Ohm to ensure effective fault current dissipation .

Installation Considerations

• Ground wires should be installed to minimize length and avoid sharp bends, ensuring low-resistance paths.
• All metallic parts of the distribution box, including handles, cabinets, and mounting structures, should be bonded to the ground to create an equipotential zone .
• Periodic testing of ground resistance is recommended to maintain safety and compliance with standards.

Summary

Grounding of lines in a distribution box is essential for safety, equipment protection, and system reliability. It involves connecting the box and its components to a low-resistance earth path, grounding the neutral where applicable, and ensuring proper wire sizing and resistance limits. Following these practices ensures that fault currents are safely dissipated and that the electrical system operates reliably under both normal and fault conditions .
