The type of fiber optic panel depends on installation location, fiber density, and network requirements, with common options including rack-mount, wall-mount, outdoor, and DIN-mount panels.

Panel Types and Installation

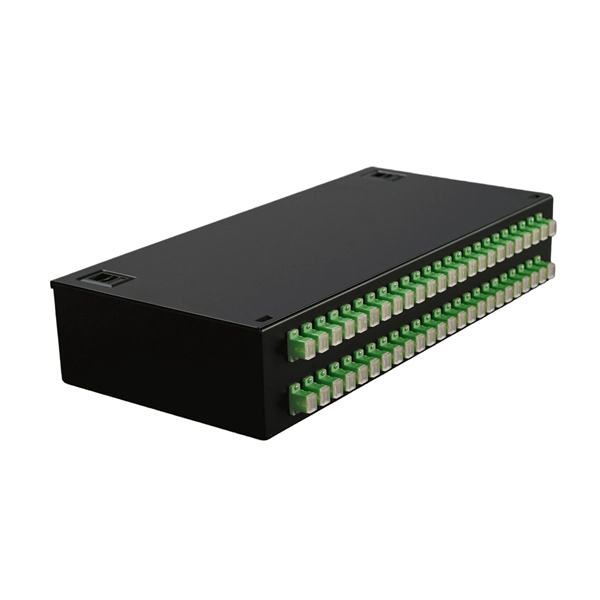

Rack-Mount Panels: Ideal for data centers and large network environments, these panels fit standard 19-inch or 23-inch racks and provide high port density. They often come in 1U, 2U, or 4U sizes, accommodating up to 288 fibers or more. Rack-mount panels may feature slide-out trays for easy access or fixed trays for simpler installations, with slide-out designs facilitating maintenance without disrupting adjacent connections . Wall-Mount Panels: Suitable for smaller offices, FTTH, or FTTB deployments, wall-mount panels save space and can be installed on concrete, metallic panels, or telco backboards. They provide organized fiber terminations in compact areas where racks are unavailable . Outdoor Panels: Designed for direct outdoor installation, these panels protect fibers from environmental factors such as rain, snow, dust, and wind. They are typically made from fiberglass, steel, or aluminum and are essential for outside plant (OSP) applications . DIN-Mount Panels: These are used in specialized industrial or telecom environments where DIN rail mounting is preferred, offering compact and secure installation options.

Key Considerations

• Fiber Type: Panels can house both single-mode and multi-mode fibers, but they should be routed into separate, clearly labeled adapter plates or cassettes to prevent cross-connection errors .
• Density and Scalability: High-density panels save space but may complicate access. Cassette-based modular panels allow seamless upgrades from 10G to 400G/800G networks without replacing the entire panel .
• Bend Radius Protection: Proper internal routing prevents micro-bending losses, maintaining signal integrity and optical link performance .
• Standards Compliance: Ensure the panel meets TIA-568.3-E and ISO/IEC 11801 standards for interoperability and acceptable insertion loss .
• Operational Workflow: Slide-out trays improve technician access for moves, adds, and changes (MACs), while fixed panels may require access from both front and rear .

Summary

Selecting the right fiber optic patch panel requires evaluating installation location, fiber count, port density, environmental conditions, and maintenance needs. For large-scale, high-density networks, rack-mount panels with slide-out trays are preferred. For smaller or space-constrained deployments, wall-mount panels are suitable. For outdoor or industrial applications, weatherproof or DIN-mount panels ensure protection and reliability. Proper planning ensures scalability, signal integrity, and efficient network management .
