Connecting a fiber optic cable to a distribution box involves careful cable preparation, routing, splicing or connector attachment, and secure management within the box to ensure reliable network performance.

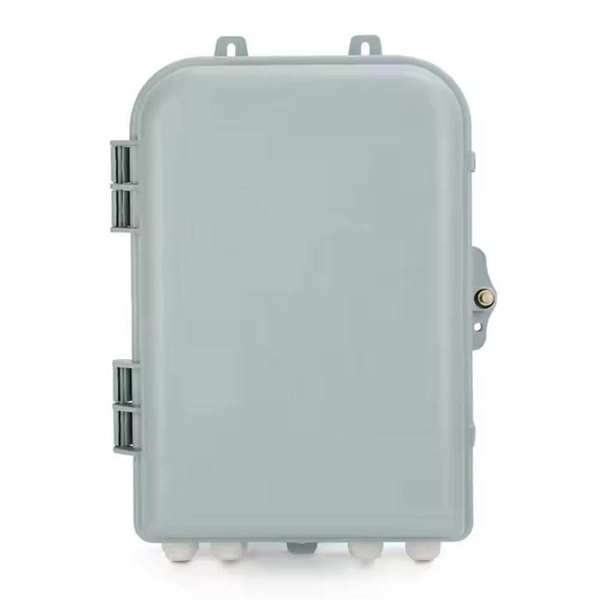

Step 1: Prepare the Distribution Box

Install the fiber optic distribution box in its designated location, such as a rack or wall mount, using the provided brackets and screws. Ensure the installation orientation meets your network layout requirements and that the box is stable and accessible for future maintenance .

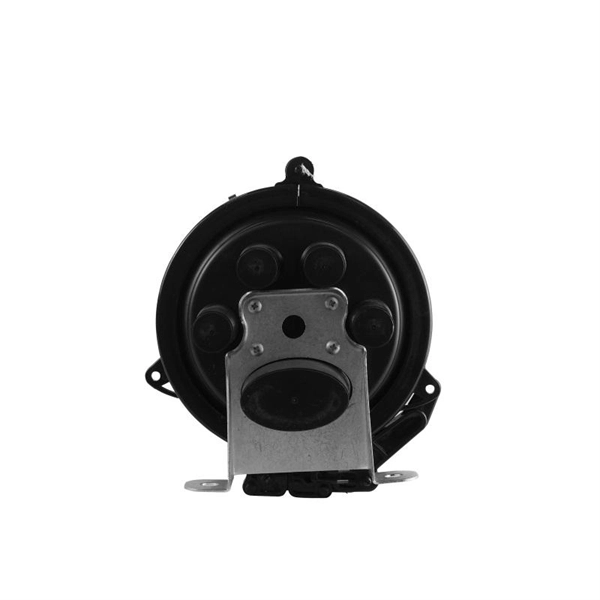

Step 2: Introduce the Fiber Optic Cable

Feed the fiber optic cable into the distribution box through the designated cable inlet. Use a grommet or cable entry fitting to secure the cable and prevent movement. Ensure the cable is long enough to allow the front panel of the box to be fully extended without tension on the fibers .

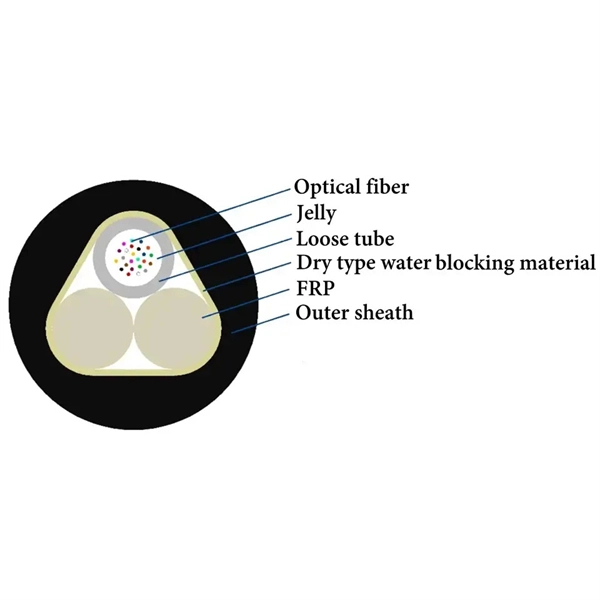

Step 3: Prepare the Fiber Ends

If using pre-terminated pigtails or branch fiber jumpers, strip the outer jacket carefully and protect the bare fibers with protective tubes or connectors. For fusion splicing, cleave the fiber ends precisely using a fiber cleaver to ensure a clean splice .

Step 4: Splice or Connect Fibers

• Fusion Splicing: Align the fiber ends in a fusion splicer and fuse them together. Place the spliced fiber into the splice tray within the distribution box.
• Connector Termination: Attach the appropriate connector (LC, SC, or ST) to the fiber end and insert it into the adapter panel of the distribution box. Ensure each fiber is connected to the correct port .

Step 5: Route and Secure Fibers

Route the fibers along the designated paths inside the box, using bend radius control clips to prevent sharp bends. Secure the main trunk with cable ties or movable clips, while branch fibers may remain free if not under tension. Avoid exceeding the minimum bend radius to prevent signal loss .

Step 6: Test and Verify

After all connections are made, test the fiber optic network using tools such as an Optical Time Domain Reflectometer (OTDR) or visual fault locator to verify signal integrity and continuity. Label each port and fiber for future reference and maintenance .

Step 7: Cable Management

Organize excess fiber using Velcro straps or cable organizers to prevent tangling or stress on the fibers. Maintain a neat layout to facilitate future troubleshooting and ensure long-term reliability . By following these steps, you can safely and effectively connect fiber optic cables to a distribution box, ensuring optimal performance and protection of the delicate fibers.
