Electric shock protection in distribution boxes is achieved through proper grounding, insulation, surge protection, and certified enclosures designed to prevent accidental contact with live parts.

Key Protection Methods

1. Extra-Low Voltage (ELV) and Energy Limitation Using ELV circuits or limiting the energy of discharge reduces the risk of electric shock in low-power circuits. ELV ensures that the voltage remains below 50 V AC or 120 V DC, which is considered safe for human contact . 2. Automatic Disconnection and Earthing Fault protection is achieved by automatically disconnecting the supply if exposed conductive parts are properly earthed. This ensures that hazardous live parts are not accessible and accessible conductive parts are safe . 3. Surge Protection Devices (SPDs) SPDs protect distribution panels from voltage spikes and transients. They operate by diverting excess energy to the ground during surges, preventing damage to circuit breakers, transformers, and connected equipment. SPDs are classified as:

• Type 1: Between the secondary of the service transformer and the main breaker
• Type 2: Permanently on the load side of the main breaker
• Type 3: Point-of-use devices within 10 meters of the panel SPDs often use Metal Oxide Varistors (MOVs) and Gas Discharge Tubes (GDTs) to respond quickly to surges .

Certified Distribution Panels

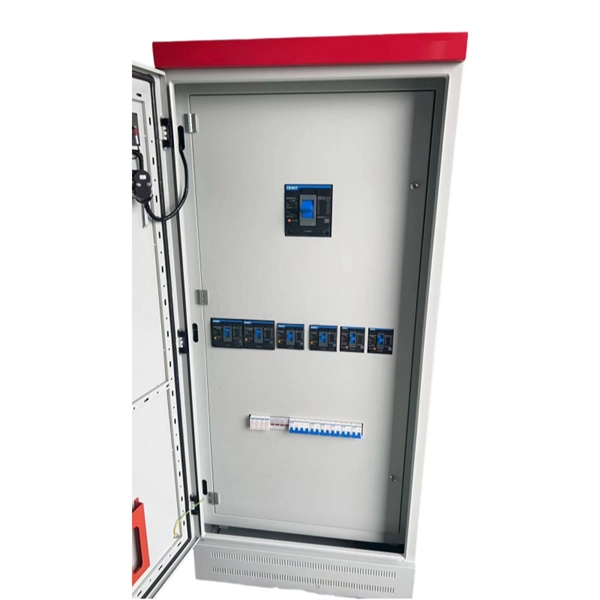

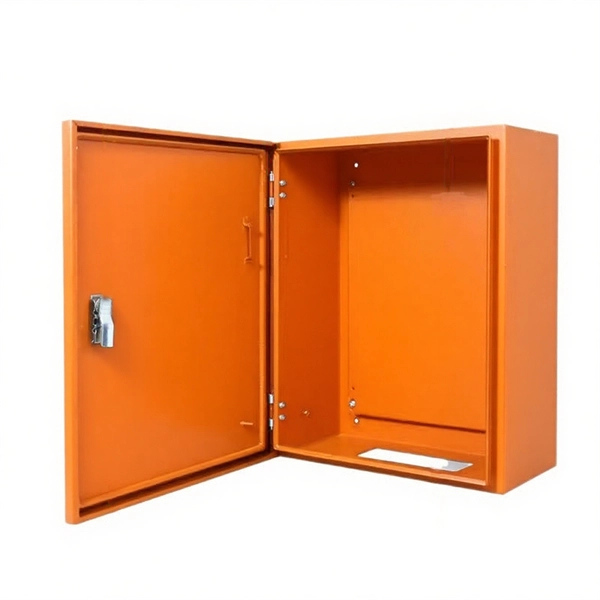

1. Explosion-Proof and Hazardous Area Panels For industrial or hazardous environments, distribution boxes can be made from stainless steel, GRP, or sheet steel with IP42 to IP66 ratings. Panels with ATEX or IECEx certification provide protection against electric shock and explosions in Zones 1, 2, 21, and 22 . 2. Customizable Control Panels Modern panels allow mounting of control elements, meters, and switches on the cover panel for space efficiency. They are designed to withstand extreme temperatures and harsh outdoor conditions, ensuring both safety and operational reliability .

Practical Considerations

• Ensure proper earthing and bonding of all conductive parts.
• Use DIN-rail SPDs for compact integration in existing panels.
• Select panels with appropriate IP rating for indoor or outdoor use.
• Verify certifications (ATEX, IECEx, UL) for compliance in hazardous areas.
• Regularly inspect and maintain SPDs and circuit breakers to ensure continued protection. By combining grounding, insulation, surge protection, and certified enclosures, electric shock risks in distribution boxes can be effectively minimized while maintaining operational safety and compliance.
